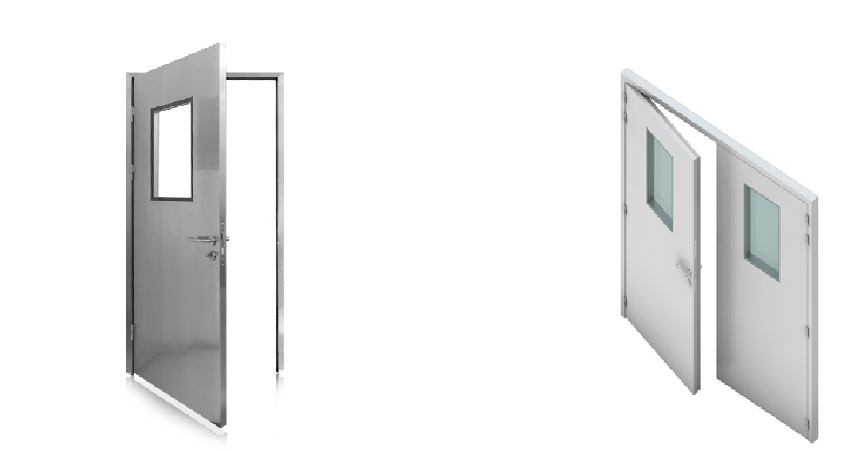

Swing Door’s
Single Leaf & Double Leaf Door’s
These doors are prime high-performance doors that are designed to protect clean rooms in the organization. The clean room doors enhance the environmental structures that can impact your buildings. Such as pollutants, contaminants, dust and microbes. Clean room doors are one of the most important considerations of weight. The core material that is used to build is a vital part of the overall performance of the clean room door and the material used to create these doors are paper honeycomb and aluminium honeycomb. These doors have features like high efficiency particulates that filter to trap unwanted particles and remove them from the space. Also, clean room doors have climate control properties. The food, pharmaceutical, health, and other industries have the most comprehensive and strict hygiene standards in the world. The clean room doors allow cleaning and have several hygienic features. These doors need low maintenance, but they are highly energy-efficient, which gives the productivity advantages of high-speed doors for pharmaceutical and food industries
Specifications:
- Frame Sheet Thickness: 1.2mm
- Leaf Sheet Thickness: 0.8mm
- Infill: Honeycomb Kraft Paper
- Glass: Double Glazed Glass 5mm Thick
- Lock System Standard: Mortise Lock
- Pivot/Hinge SS Butt Hinge:
- Door Closer
- Other Hardware:
- Kick Plate (Optional)
- Concealed Flush Bolt (Double Leaf Door)
- Drop Seal
- Door Bumpers
- Door Stopper
- MOC : PPGI /Stainless Steel
- Finish: Powder Coating / SS

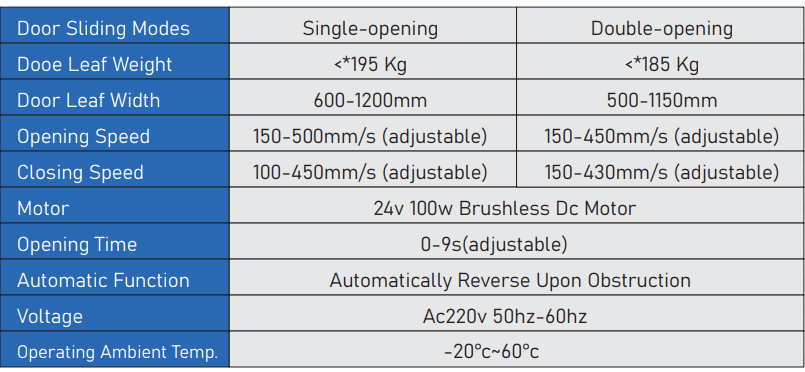

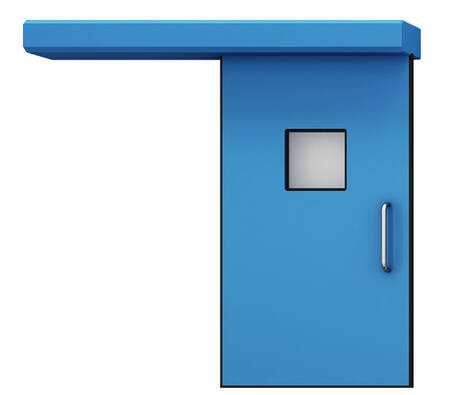

Sliding Doors
The medical automatic& manual door is a door that is generally installed in the operating room or the ICU ward for the medical staff to push in and out of the hospital bed. The medical automatic door has the function of inductive opening and safety anti-pinch. The medical staff’s only needs to extend the foot into the light control foot sensing box next to the entrance, and the door will automatically close. Door panel inside filled polyurethane foam with technology overall high-pressure, high-strength aluminium alloy frame, the automatic lifting large platform hydraulic pressing equipment. After a period of time, the door will automatically close after the cart and medical staffs have fully entered. If someone or a cart is next to the door leaf, the door will not close to provide a safe anti-pinch. In addition, the door frame of the medical automatic door is made of sealed profile, which has the characteristics of high air tightness; the light control foot sensing is adopted for the entrance and exit, so that the medical staff can open the door [without contact”, which can effectively isolate the bacteria and personnel.

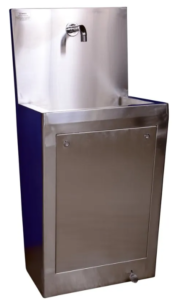

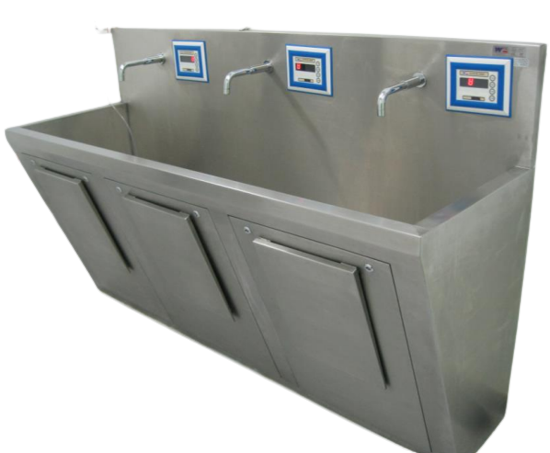

SS Scrub Sink (1 way, 2way, 3 way)
The primary goal of SS OT sink is to protect patients by preventing contamination in the surroundings. It also aims to keep transient bacteria and detritus from spreading from the hands and forearms. Grade and excellence are assured with the premium quality of hospital scrub sink in India, and much focus is placed on the quality of the materials used in their manufacture. They serve as the scrub station for surgeons and other OR staff to scrub their hands and arms before a surgical or invasive procedure. By performing a surgical hand scrub before surgery, surgeons and surgical staff take the necessary precautions to mitigate transient and resident flora, which may reduce the risk of Healthcare Associated Infections (HAIs).
Water Control – Water controls on scrub sinks may be operated by hand or with a hands-free feature like a knee operated panel, foot pump, or infrared sensor.
Digital Timer – A digital timer is used to ensure that the proper amount of time is spent on hand hygiene before entering the operating room. Timers count down from a pre-determined start to prevent scrubbing in for less than the desired length of time.
Soap Dispenser – Proper dose of surgical scrub chemistry is also very important when selecting a scrub sink. Soap is typically dispensed by a hand pump, foot pump, knee operation, or infrared methods.
Station/Bay – Scrub sinks may be constructed with one, two, or three stations at which multiple members of the OR staff can wash their hands at the same time
Product Details:
| Brand | A3G India |
| Usage/Application | Hospital |
| Dimension | As per customer requirement |
| Tap Operated By | Automatic/Manual |
| Color | Silver |
| Material | Stainless Steel |

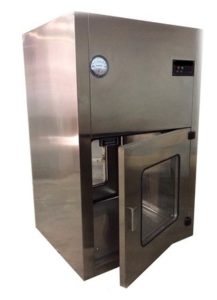

Pass Box
Pass box is one of the cleanroom systems, which is used to transfer materials from one side to other side through controlled environment in order to avoid airborne cross contamination. As the name states itself, the primary and only work of a pass box is to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation. Interlocking door mechanism is the prime feature of a pass box, when door at one side is open the door at other side remains closed. It is popular with other names such as cleanroom pass through, clean transfer window and transfer hatch; in addition, it is widely used in Microbiology Laboratories in Food, Pharmaceutical, Chemical Industries and Hospital A pass box is designed in two different types; Static and Dynamic, it is the user specific requirement which decides the right design configuration

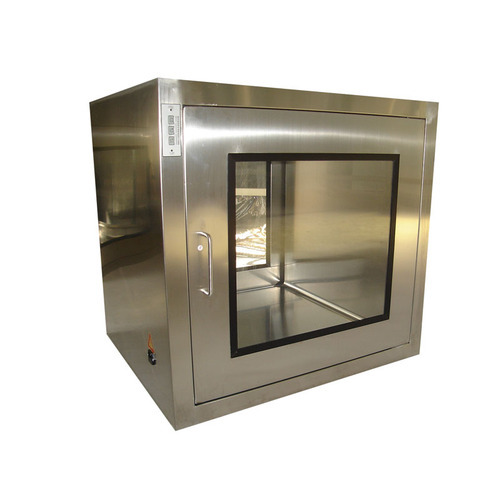

Static pass box on the other hand is fitted only between two clean room areas and has no air supply or extract. It is also known as passive pass box and equipped with UV Light
A dynamic pass box is fitted between classified and non-classified areas. Material is passed through vertically HEPA filtered air.

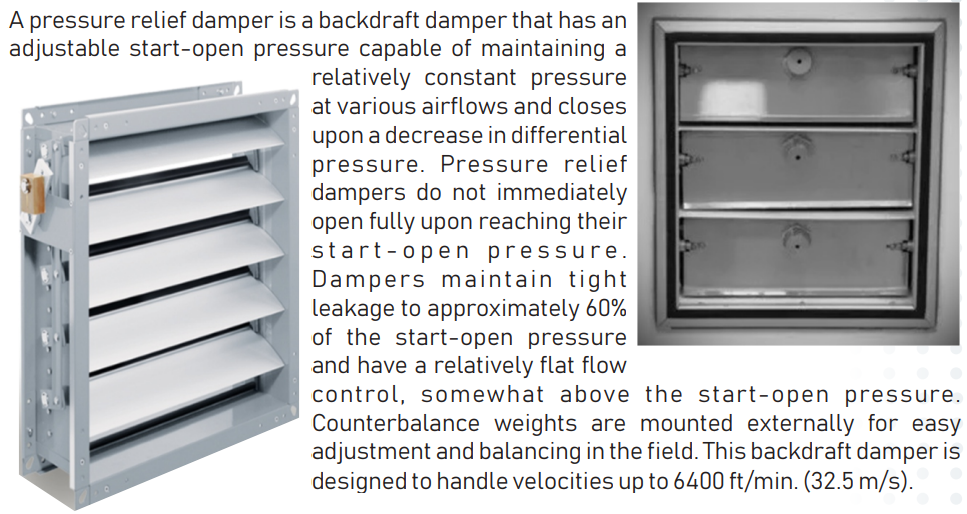

Pressure Release Damper

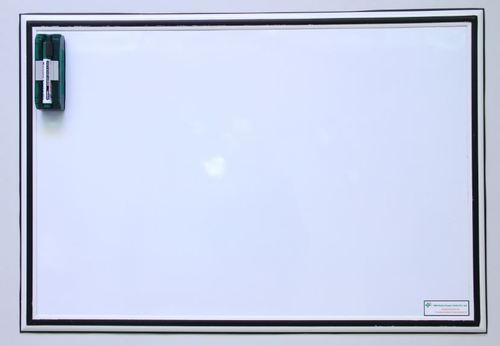

Writing Board
Operating List Writing Board is a necessary product in OT and nursing rooms. This list board works as an instructor to guide surgeons step by step for the entire procedure to avoid mistakes. These boards are known for improving the operation performance and reducing the chances of mistakes during a major operation in a shorter time period. There are several operating list board manufacturers are available in the market, but the A3G India is the best operating list board manufacturer and suppliers.

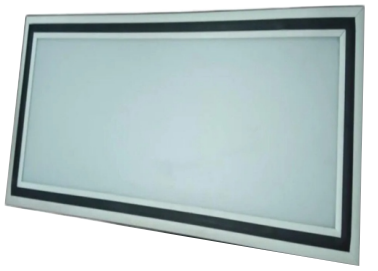

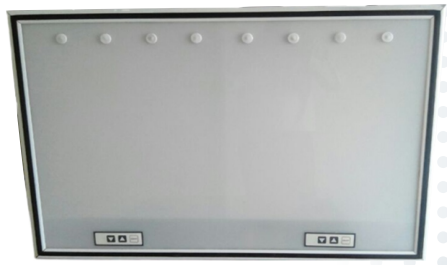

X-ray Board
The 2-plate X-Ray viewing screen will meet electrical safety codes for high & low voltage system. It will be designed to provide flicker free luminance for the film viewing purpose. It will be installed flushed with the theatre wall for hygienic and ease of cleaning purpose. The X-Ray viewing screen will be designed for the purpose of front access. The X-Ray viewing screen will be illuminated by 4 pieces of high frequency fluorescent lamps and the dimming is controlled by the usage of dimming ballast with the PCB that is mounted inside the box

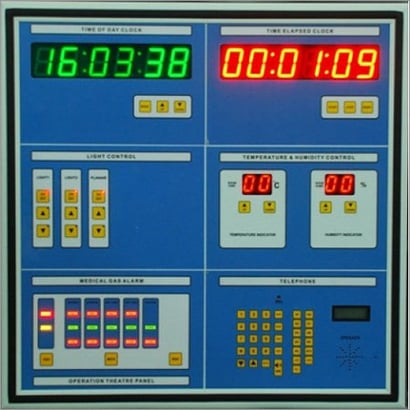

Control Panel
Surgeon Control Panel has been designed to cope with technology and equipment in operating environment. It is designed to be user friendly and ease of operating & maintaining purpose. Control
panel comprising of following. User can choose any of the services as per their requirements.
- Daytime digital clock Elapsed
- Time digital clock
- Temperature And humidity Indicator
- Peripheral light controller
- Medical gas alarm (Hi/Low/Normal)
- LCD Hands free telephone

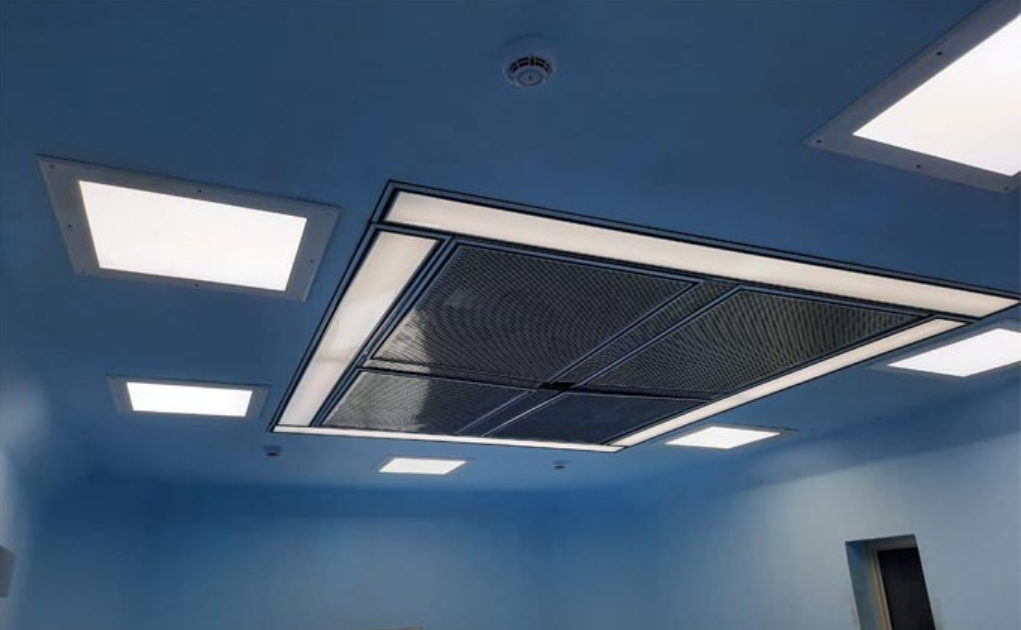

Laminar Air Flow
Ceiling Mounted Laminar Flow makes an integral application in Operation Theatres.
Hospitals search for top quality Ceiling Mounted Laminar Flows to ensure ultra clean
sterile HEPA filtered Class 100 first air into OTs where highly sensitive activities take place
Features of Modular Healthcare System’s Ceiling Mounted Laminar Flow:
- The best quality raw material
- Advanced manufacturing technology
- Perfect sterilization of air
- Equipped with HEPA filters with different performances
- Factory assembled for easy installation
- Simple fixation system
- Availability of ceilings in various shapes
- Filter frames made from stainless steel
- Uniform and constant air distribution
Peripheral Lights
Peripheral light: Recess mounted IP54 Protocol, non-hygroscopic peripheral lights having compact fluorescent lamp and LED Lights. We are offering comprehensive range of Sealed
Clean Room Light. Our production process is executed out under the guidance of highly skilled and well-trained experts. Their vast industrial experience and extensive knowledge
enable us to offer optimum range of products
Features:
- Easy installation
- High brightness
- Long working life

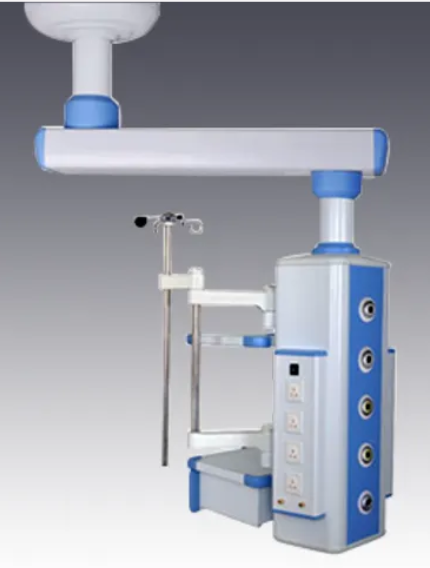

OT Pendants
Our multipurpose OT Pendants are designed to provide convenient positioning of medical equipment, gas and other instruments. The flexibility for the movement of head end axis allows the user to choose optimum height and position. Arms and shelf’s can be easily cleaned in order to minimize possible contamination. We offer OT Pendants in different models with option for single and double arms. Our OT Pendants provides a platform for surgical and monitoring equipment for medical staff operative theatre. Our pendant is designed to produce suited positioning of medical equipment, gas and other instruments. They supply all necessary services and equipment needed operative Theatre and Delivery Rooms for anesthesia and surgical purposes.
Type of Pendant:
- Single arm surgical pendant
- Double arm surgical pendant
- Fixed Surgical pendant
- Fixed Laparoscopic pendant
- Single ARM Laparoscopic pendant
- Double ARM Laparoscopic pendant
- Modular Electric Single ARM Pendant

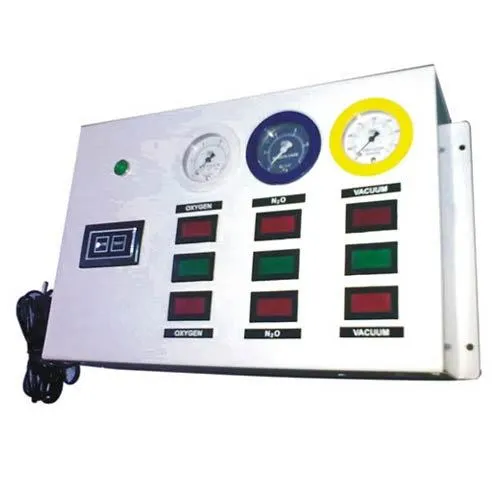

Gas Alarm System
We are engaged in offering a high quality of Medical Gas Alarm System – Analog Display Type. With monitoring gas flow totally and partly, its system that monitors to take prompt action of unexpected situation with ringing a bell abnormal at a special area. It installs at each floor of corridor and nurse call station of important departments like ER, ICU, and OR and monitors and abnormal pressure and so on.
Medical Alarm System
Available for single line or 3 line – for oxygen air suction nitrous vacuum. Very precise and compatible for hospital services

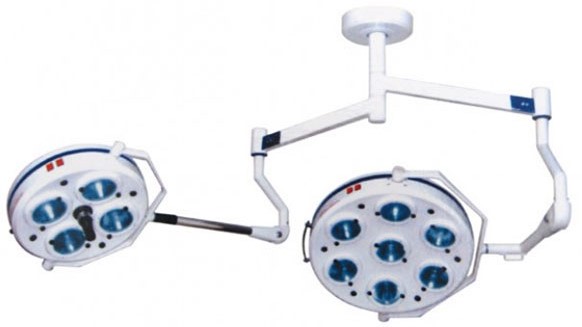

OT Examination Light
The all new A3G LED Elite 19 examination light comes with an excellent illuminance of 60,000 lux and promises to deliver the highest lighting performance and colour A large operating illuminated area makes it extremely easy for the practitioners to Analyse the large areas of tissue and makes it easier for them to target the examination light on the patient.

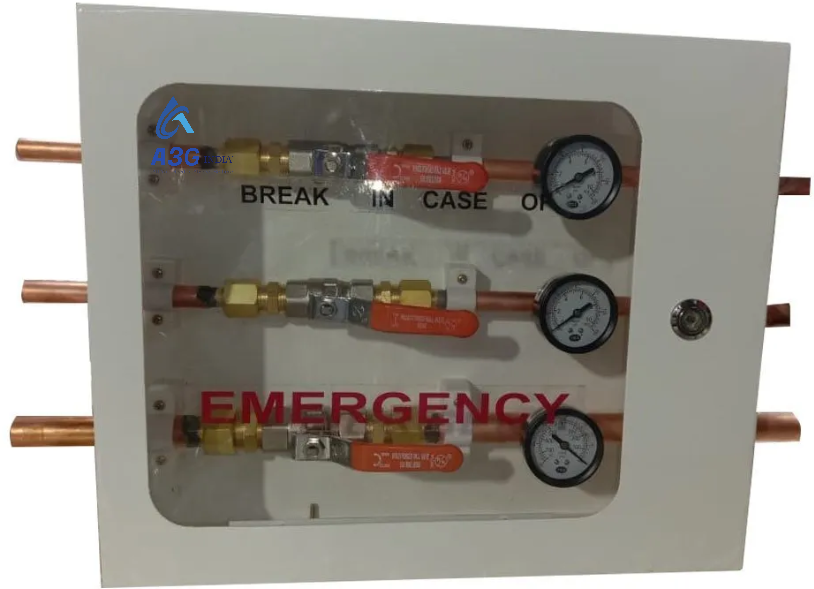

Zonal Valve Box
Zone Valve Boxes are mainly used in medical pipelines to allow maintenance of individual zones without disturbing the gas flow to other zones. In case of emergencies, zone valve boxes can also be used to shutoff of gas distribution to individual zones. A single box can hold from 1 to 6 valves, allowing control of 6 types of gas. All boxes are factory-assembled with the smallest valve on top, largest on bottom.

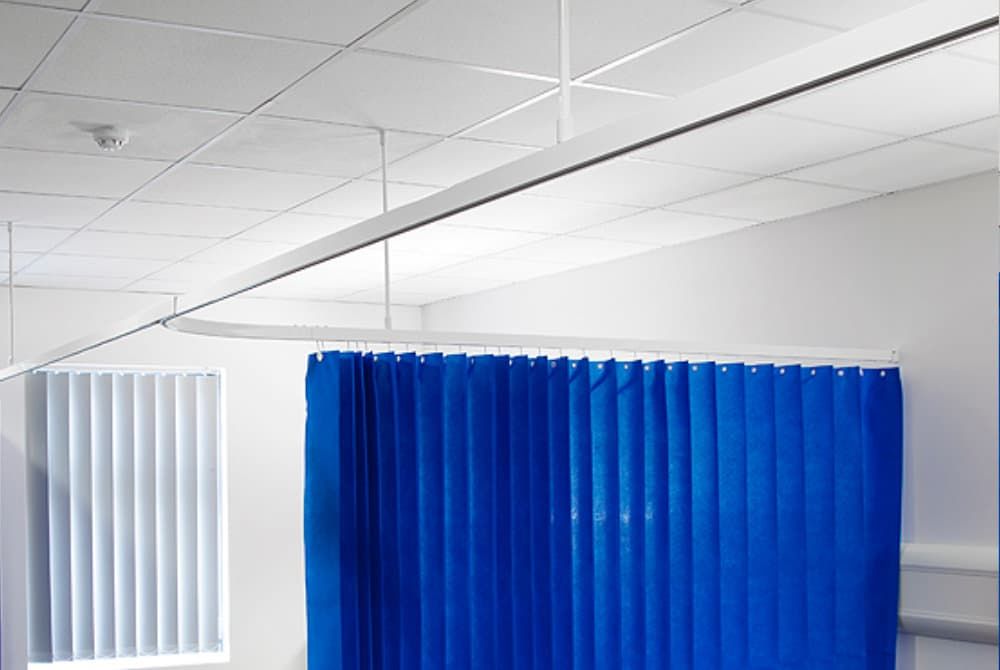

Hospital Curtain Track
The hospital curtains and tracks can be mounted either on the wall or on to the ceiling. The Load Release System is our answer to the health care sector’s need to have cubicle curtain track and regular curtains rails released under certain conditions. This unique, patented solution allows the rail to be released from its attachment points under momentary loads of approximately 35kg. The rails can then be easily reinstalled without tools.
